產品簡介

憑借其令人印象深刻的范圍、卓越的強度,、美麗的風格和世界一流的安全性,，Passage Maker 74被創造出來，為那些尋求有吸引力的海上家園的人提供強大的價值和自豪感,。

由著名的海軍建筑師Chuck Paine設計,，Passage Maker 74繼承了Kanter Marine設計的一系列非常成功的Pain-designed鋁合金機動船。她的設計是為了提供1800英里（百慕大到亞速爾群島）的遠洋航程和儲備,，即使在她的最高速度下也有適度的燃料消耗,，以及適度的吃水。

高效的性能是由前部的圓舭過渡到后部的脊柱所保證的,，它有一個單一的噴欄和一個相對較高的棱鏡系數0.67,。全長的龍骨可以保護螺旋槳和船舵。鑒于全長龍骨的存在,，僅有5英尺2英寸的適度吃水是非常合理的,，以減少擱淺的風險并抑制游艇在海路上的滾動,。鋁合金焊接結構使其具有令人印象深刻的強度和適度的輕量，這增加了Passage Maker 74的效率,，以最大限度地提高可用的范圍和最高速度,。

Passage Maker 74的水箱提供4000加侖的燃料容量和575加侖的淡水容量。這些水箱都是整體的,，為船體提供了進一步的結構強度,，并在它們出現的地方形成一個雙層底部。廢水箱和灰水箱是可拆卸的結構,。按照規定,，如果以9至10節的速度行駛，Passage Maker 74可以通過百慕大/亞速爾群島航線進行跨大西洋航行,，這取決于風和水流條件,。

英文介紹

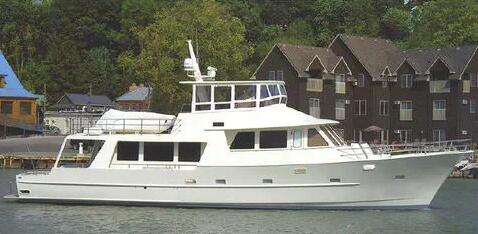

With her impressive range, exceptional strength, beautiful sense of style and world-class safety, the Passage Maker 74 was created to provide strong value and pride of ownership to those seeking an attractive seagoing home.

Designed by noted naval architect Chuck Paine, the Passage Maker 74 follows on the heals of a series of highly successful Paine-designed aluminum-alloy motor craft created by Kanter Marine. She was created to offer an ocean-going range of 1,800 (Bermuda to the Azores) miles plus reserve, modest fuel consumption even at her top speed as well as moderate draft.

Efficient performance is insured by the round-bilged forward bottom, transitioning to a chine aft, with a single spray rail and a relatively high prismatic coefficient of 0.67. A full-length keel protects the propeller and rudder. The modest draft of just five feet, two inches is very reasonable given the presence of a full-length keel to reduce the grounding risk and dampen the yacht’s roll in a seaway. Welded aluminum construction makes for impressive strength and moderately light displacement, which increases the Passage Maker 74’s efficiency in order to maximize the usable range and top speed.

The Passage Maker 74’s tanks provide 4000 gallons of fuel capacity and 575 gallons of fresh water capacity. These tanks are all integral, lending further structural strength to the hull and forming a double bottom wherever they occur. The waste and gray water tanks are of removable construction. As specified, the Passage Maker 74 has transatlantic range via the Bermuda/Azores route if driven at a speed of 9 to 10 knots, depending upon wind and current conditions.
