產品簡介

Explorer RTE氣體傳感器系列允許在ATEX分類區域檢測有毒氣體,。

RTE 1001是一個氧氣(O2)氣體傳感器,，量程為0-30%，它配備了一個4-20mA的變送器,，裝在防爆外殼中,。

發射器的PCB板上有一個用于服務操作的本地顯示，它還有一個用于溫度變化補償?shù)奶厥怆娐贰?/p>

主要特點

電化學電池技術

用于¾"NPT電纜接頭的防爆鋁容器

用于ATEX 94/9/EC安全系統 ATEX 94/9/EC

INOX鋼制傳感器

完整的配件系列

非常好的價格-質量關系

非?？斓姆磻?yīng)

應用范圍

氧氣傳感器,，具有ATEX認證，和4-20mA變送器,。

ISSeP04ATEX036 - II 2GD - EEx d IIC T6 - IP 6X - T85°C - CE.

RTE Sériés傳感器允許在防爆區對這些氣體進行連續監測,，并根據ATEX指示提供一個壓鑄鋁錫容器。

相反,，RTS sériés傳感器可以只在安全區域使用,。

一些傳感器只有這個版本；而對于其他不同的氣體檢測,，你可以使用兩種解決方案,。有毒氣體檢測的單位是ppm（百萬分之一），而氧氣濃度的單位是體積百分比,。關于氧氣,，有兩種不同的傳感器可供選擇：經典的傳感器，范圍為0-30%體積,；KE-25型傳感器,，用于在富含二氧化碳（CO2）的環境中測量氧氣，直到100%體積,。

安裝在發射器PCB卡上的內部顯示屏,，使檢查重復程序、測試和校準變得容易,，只需通過3個按鈕就可以使用,。

英文介紹

Explorer RTE gas sensor series permit to detect toxic gases in ATEX classified areas.

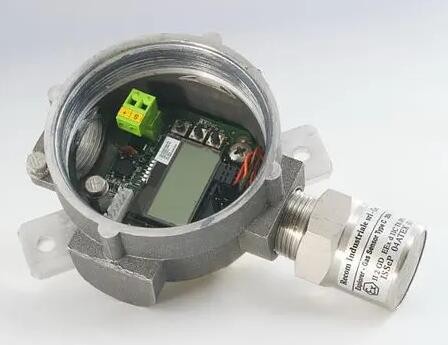

RTE 1001 is an Oxygen (O2) gas sensor with range 0-30% vol and it comes complete with a 4-20mA transmitter in a Exd enclosure.

Transmitter PCB board has a local display for service operations and it also has a special circuitry for temperature variation compensation.

Main features

Electrochemical cell technology

Ex Aluminum Container for ¾” NPT cable gland

For ATEX 94/9/EC security systems ATEX 94/9/EC

INOX Steel Sensor

Complete series of accessories

Very good price-quality relationship

Very fast response

Applications

Oxygen gas sensor, with ATEX approval, and 4-20 mA transmitter.

ISSeP04ATEX036 - II 2GD - EEx d IIC T6 - IP 6X - T85°C - CE.

RTE Sériés Sensors permit the monitoring in continuous of these gas in Exd-classified Areas, and are supplied with a die-cast aluminium tin container according to the ATEX indications.

RTS sériés sensors, on the contrary, can be used just in the safe areas.

Some sensors are available just in this version; while regarding other different gas détections, you can use both solutions. The toxic gas détection is been in ppm (parts for million), while the oxygen concentration is shown in % volume.

Regarding the oxygen, 2 different sensors are available: the classic sensor with range 0-30% vol. and the KE-25 type sensor, for the oxygen measurements till 100% vol. in environments that are rich of carbon dioxide (CO2).

The inner display, mounted on the transmitter PCB card, makes easy the check recurring procedures, the tests and the calibration, just through the 3 buttons use.
